1. Customer Requirements: Two Custom Liquor Gift Box Designs

The customer wanted two custom packaging concepts for their liquor bottles. Both designs required magnetic closures, but each used a different approach to bottle organization, internal support, and box construction.

For premium spirits packaging, the presentation of the bottles is important, but the internal packaging must also be designed around their actual dimensions and shapes.

Design A: Six-Bottle Magnetic Rigid Liquor Box

The first concept was a magnetic flip-lid rigid liquor gift box with six separate internal compartments.

The customer requested EVA supports at the bottom of the compartments to position the liquor bottles. Individual dividers separated the bottle spaces, creating an organized internal layout.

The important consideration was ensuring that the divider dimensions, EVA positioning holes, and outer box size corresponded with the actual liquor bottles.

Design B: Foldable Magnetic Liquor Gift Box with Three Bottle Positions

The second concept used a foldable magnetic rigid liquor box with a custom paperboard insert designed for three bottles.

This insert featured die-cut openings shaped around the liquor bottles rather than simple rectangular compartments.

The foldable outer box and the internal paperboard insert needed to be developed as compatible structures.

2. Engineering Challenge: Designing Custom Inserts for Liquor Bottles

For custom liquor bottle packaging, the internal structure cannot be developed accurately from bottle capacity alone.

Liquor bottle bodies, shoulders, necks, and caps can have different dimensions. These features influence the size and position of the insert openings, the amount of clearance required, and the overall packaging dimensions.

An opening that is too small may make inserting or removing a liquor bottle difficult. An oversized opening may allow unnecessary movement inside the gift box.

The customer therefore sent physical liquor bottles to DHP Boxes to support the packaging development process.

Our team used the supplied bottles as references when preparing the internal insert dielines and recommending outer box dimensions for both liquor gift box designs.

Why Physical Liquor Bottle Samples Were Important

• Actual bottle geometry: The real liquor bottles provided a direct reference for the body, neck, and cap shapes.
• Insert positioning: The bottle dimensions informed the locations and sizes of the EVA supports and paperboard cutouts.
• Outer box sizing: The recommended liquor box dimensions could account for both the bottles and the internal structures.
• Physical verification: The samples made it possible to check how the liquor bottles fitted into the proposed packaging.
• Structural evaluation: The outer box, internal dividers, and insert components could be assessed together.

3. Our Development Process: From Liquor Bottle Samples to Packaging Dielines

After receiving the customer's physical liquor bottles, DHP Boxes began developing the two magnetic rigid box structures.

The process started with evaluating the bottle dimensions and internal arrangement requirements.

Based on these requirements, our team recommended suitable outer liquor gift box dimensions and prepared the structural dielines for the boxes and their corresponding inserts.

Once the structural dielines were prepared, the customer provided the packaging artwork.

The development then progressed through white samples and printed samples to assess both the physical construction and the intended branded appearance.

This approach allowed the liquor box structure and bottle fit to be considered before the packaging moved toward production.

4. Solution A: Six-Bottle Magnetic Liquor Gift Box with EVA Inserts

The first solution featured a magnetic rigid flip-lid liquor gift box with six individual bottle compartments.

Internal dividers separated the liquor bottle positions, while EVA components were used at the base to provide defined bottle positioning points.

The compartment system created a structured presentation for multiple liquor bottles and allowed the customer to evaluate the organization of the products inside the box.

Combining EVA Bottle Supports with Compartment Dividers

EVA foam can be cut to accommodate specific product dimensions and is frequently used in customized protective packaging inserts.

In this custom liquor box design, the EVA base supports were combined with individual compartments rather than using one continuous bottle-shaped foam insert.

The divider layout and EVA support positions needed to correspond with the six-bottle arrangement.

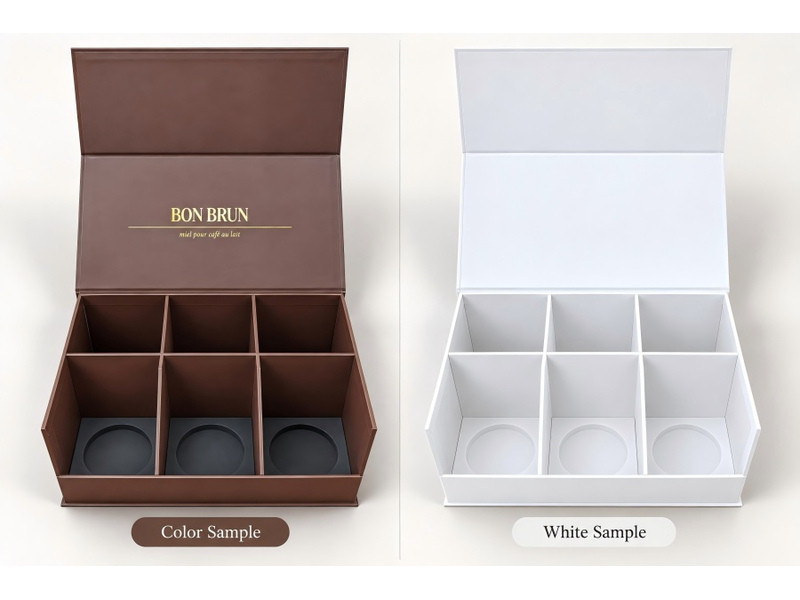

A white sample and a colored sample were developed to evaluate this custom liquor packaging concept.

The available project records demonstrate the sampling and structural evaluation stage for this six-bottle magnetic liquor box. Its mass production status is not included in this case study.

5. Solution B: Three-Bottle Foldable Magnetic Liquor Box with Paperboard Inserts

The second liquor packaging design used a foldable magnetic rigid box with a custom die-cut paperboard insert for three liquor bottles.

Unlike the six-compartment version, this design used shaped paperboard openings to correspond with different areas of the bottle.

The cutout arrangement included wider openings for the bottle bodies and smaller openings near the upper bottle sections.

These details were developed using the physical liquor bottles supplied by the customer.

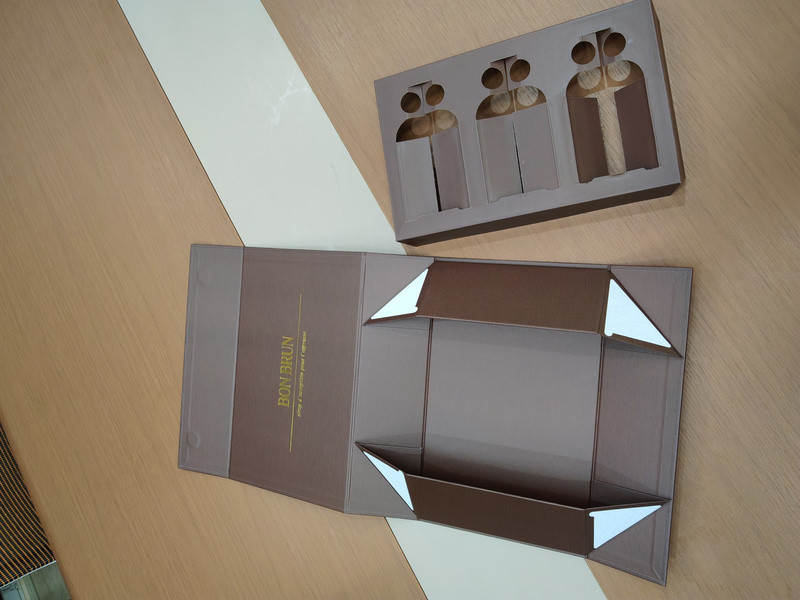

Integrating the Paperboard Insert with a Foldable Magnetic Box

A foldable magnetic rigid liquor box has additional structural considerations because its panels must form the intended box shape during assembly.

The internal paperboard insert must fit within the assembled dimensions without interfering with the folding panels or magnetic opening mechanism.

For this project, DHP Boxes developed the paperboard insert and outer box dielines together so the proposed liquor packaging structure could be evaluated as a complete system.

The white sample stage provided a physical reference for checking the bottle openings, insert position, and overall packaging geometry. The printed sample further demonstrated how the structure worked with the customer's artwork.

6. Liquor Bottle Fit Testing and Structural Sampling

An important part of this custom liquor box project was verifying the structural design before progressing to the final appearance of the packaging.

DHP Boxes prepared white samples so the customer and our team could examine the magnetic box constructions and insert layouts.

The actual liquor bottles were used to evaluate whether the internal slots and compartment dimensions were suitable.

Key Points Evaluated During Liquor Packaging Sampling

1. Internal dimensions: Whether the available space accommodated the planned liquor bottle arrangement.
2. Insert openings: Whether the paperboard cutouts and EVA supports corresponded with the real bottle dimensions.
3. Bottle placement: Whether the liquor bottles could be positioned appropriately inside the gift boxes.
4. Box assembly: Whether the folding panels and inserts could work together in the assembled structure.
5. Opening and access: Whether the magnetic liquor packaging allowed the intended product presentation and access.

The sampling process helped evaluate how the liquor bottles, supporting inserts, and outer magnetic rigid box structures worked together.

7. From White Samples to Printed Liquor Gift Box Samples

After the structural dielines had been developed, the customer supplied the artwork for the liquor gift packaging.

The project then progressed to printed samples, allowing the proposed magnetic rigid box structures to be viewed with the intended colors and branded graphics.

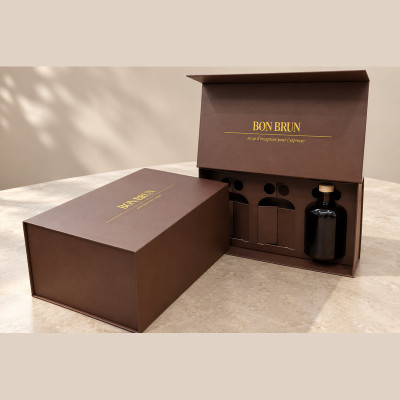

The photographs show brown liquor gift box samples with gold-colored branding, along with the developed internal bottle arrangements.

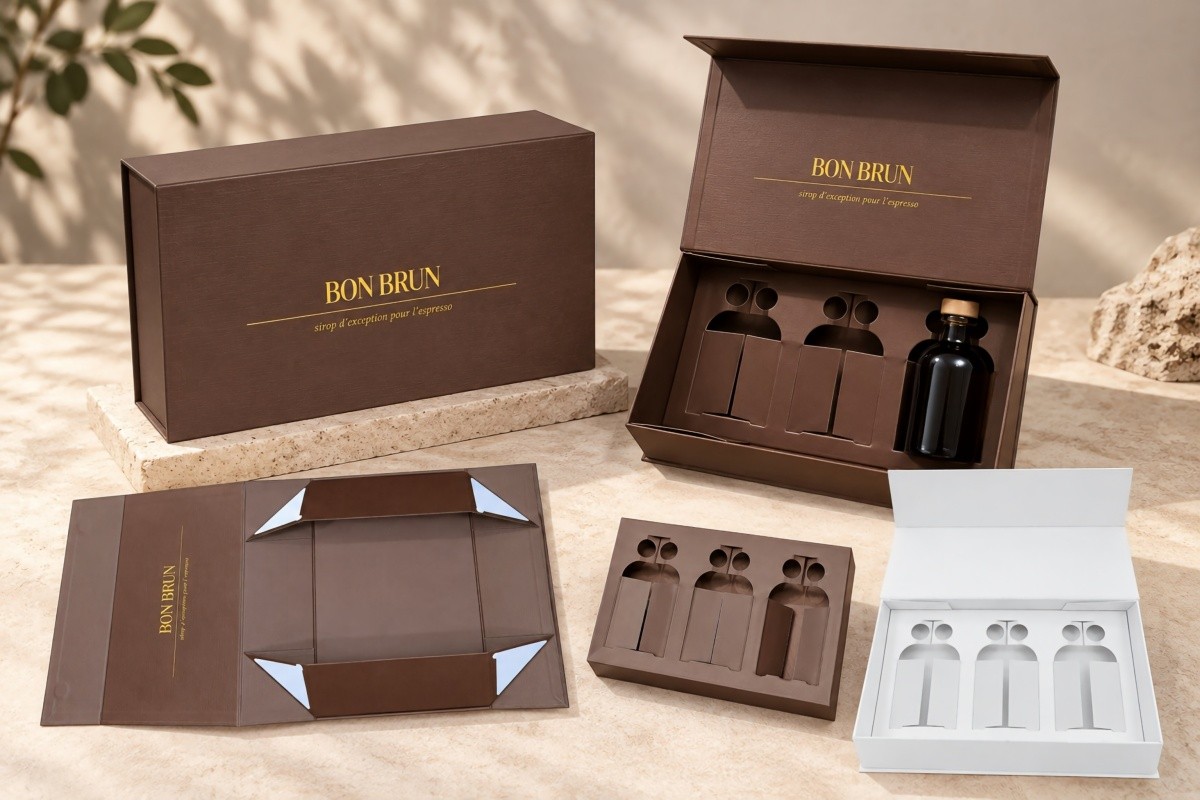

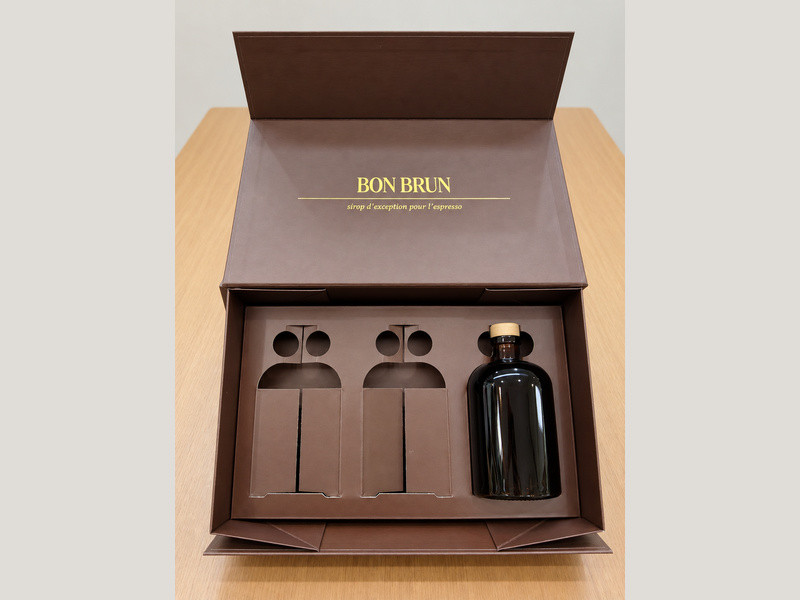

For the three-bottle foldable magnetic liquor box, the printed sample demonstrates how the paperboard insert accommodates the bottle-shaped openings.

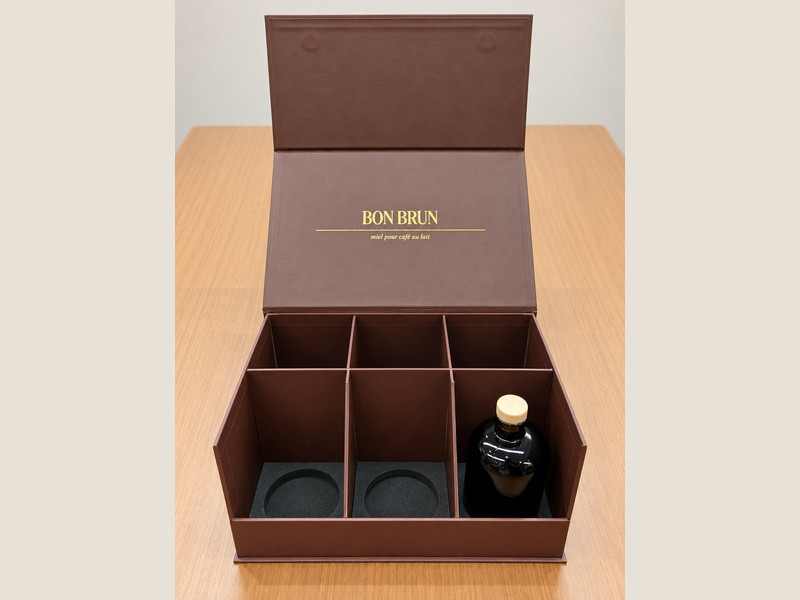

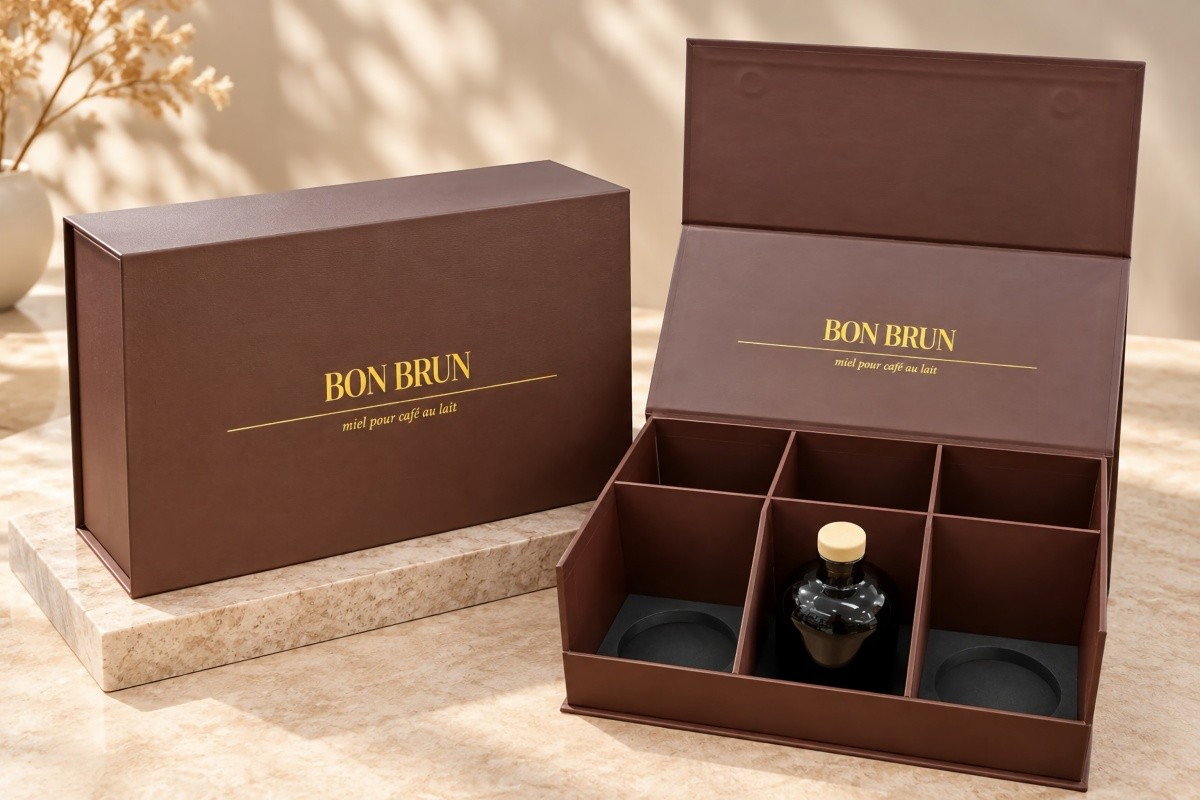

For the six-compartment magnetic rigid liquor box, the colored sample provides a clear view of the separate bottle spaces and EVA positioning supports.

These physical samples helped demonstrate the relationship between the custom liquor box structure, insert positioning, and overall packaging presentation.

8. Project Milestone: Mass Production Order for the Three-Bottle Magnetic Liquor Box

Following the structural development and sampling process, the customer proceeded with a mass production order for the three-bottle foldable magnetic liquor gift box.

This design featured the custom paperboard insert developed around the physical liquor bottles supplied by the customer.

The development process included outer liquor box size recommendations, structural dielines, white sample evaluation, printed sampling, and bottle-fit checks.

The confirmed production order marked an important transition from structural development and sampling to the manufacturing stage.

The six-compartment magnetic rigid liquor box was also developed and sampled as part of this project, but its production status is not stated here.

The photographs in this case study document the sample development and production-order confirmation stages. They should not be interpreted as photographs of a completed mass production shipment.

9. Comparing the Two Custom Magnetic Liquor Gift Box Solutions

Both solutions demonstrate different approaches to developing custom multi-bottle liquor gift packaging.

The six-compartment rigid liquor box uses individual sections and EVA bottle supports, while the three-bottle foldable magnetic box relies on a shaped paperboard insert.

Neither insert system is automatically better for every liquor bottle. The appropriate solution depends on the bottle dimensions, intended presentation, handling requirements, and packaging structure.

10. What This Custom Liquor Packaging Project Demonstrates About DHP Boxes

This case study illustrates how custom liquor gift boxes can be developed through practical structural evaluation rather than relying only on a visual packaging concept.

The customer provided physical liquor bottles, and DHP Boxes used them as the foundation for box size recommendations and custom insert dielines.

Two different magnetic liquor box structures were developed within the same project, each requiring a different relationship between the outer packaging and internal bottle supports.

Physical samples then allowed the insert openings, structural layouts, and assembled packaging concepts to be evaluated.

For the three-bottle foldable magnetic liquor gift box, the process progressed to a confirmed mass production order.

Key Takeaways for Liquor Brands and Packaging Buyers

• Start with the real liquor bottle: Physical bottle samples help establish more reliable references for custom insert development.
• Develop the insert and box together: Outer box dimensions and internal bottle support structures should be considered as one packaging system.
• Choose inserts according to the bottle: EVA supports and die-cut paperboard inserts offer different construction and presentation possibilities.
• Use structural white samples: White prototypes make it possible to examine bottle fit and packaging assembly before production.
• Review printed liquor box samples: Physical samples help connect the supplied artwork with the developed packaging structure.

As a China-based custom liquor packaging manufacturer and rigid box supplier, DHP Boxes supports packaging projects involving structural dieline development, sampling, customized bottle inserts, printing, and manufacturing.

For liquor and spirits brands looking for custom magnetic gift boxes, these capabilities help bridge the gap between a packaging concept and a manufacturable design.
